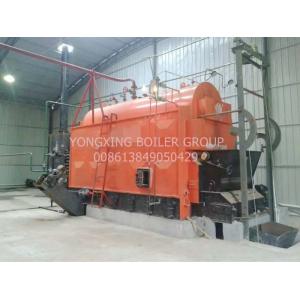

China best supplier travelling grate boiler and coal steam boiler 1/4/6/8/10t for industrial mill

Working principle of travelling grate boiler: DZL boiler is a horizontal three-return water-fire tube structure, and the combustion equipment is a light chain grate. The travelling grate boiler body adopts a longitudinal arrangement of a single drum, and a convection heating surface is formed by a threaded tobacco tube in the drum. The drum and the water-cooled walls on both sides form a furnace heating surface. The boiler can be installed quickly. The equipped electrical control system can realize the stepless speed regulation of the grate, the limit parameter alarm and the interlock protection.

Features:
Exquisite production technology
1. The key machining processes such as boiler steel plate blanking and tube sheet drilling use advanced CNC machining technology to reduce assembly stress and extend boiler service life.
2. All seam welding of the boiler adopts advanced submerged arc automatic welding technology to ensure the welding quality.
3. The first in the country to adopt arched tube plate and threaded pipe structure to increase heat conduction, completely solve the problem of cracking of the rear tube sheet.
4. Steel pipe cutting, threaded pipe pressing and convection pipe processing are all advanced CNC technology.

Unique design
1. The high-temperature flue gas generated by combustion first enters the splayed flue on both sides of the body from the tail (in this case, the water pipe type), and the flue gas flows outside the pipe. The flue gas cooled by the splayed flue enters the threaded pipe (in this case, the fire pipe type) disposed in the drum through the front smoke box. Finally, the flue gas is discharged from the rear smoke box. This design fundamentally solves the problem of tube plate cracking of the pure fire tube boiler.

Safe and reliable
1. All seam welding is subjected to X-ray inspection to ensure the quality of the weld and to prevent the occurrence of unqualified products.
2. The chain grate is manufactured by our factory. It is tested for 72 hours before leaving the factory to ensure the grate works normally.
3. Set process monitoring points to fully guarantee product quality.

Auxiliary machine configuration
1. The chain grate is all made of light steel, which is reasonably operated to ensure sufficient fuel combustion.
2. The inspection door is designed on the hearth for easy maintenance and maintenance.

High degree of automation
1. The travelling grate boiler produced by the company is equipped with an advanced automatic control system, which can detect the operation of the equipment in real time;
2. High temperature, high pressure, water shortage, leakage, air leakage, motor overload, flame out and other protection functions to ensure safe operation of the boiler.

DZL travelling grate boiler technical data sheet

Yongxing Boiler Group Co., Ltd. is a group company specializing in research, development, manufacturing, sales and installation services for various boilers and various thermal energy machinery and equipment.

Yongxing Boiler occupies an area of 60,000m2, with fixed assets of 15 million dollars, and is used for more than 100 sets of large and medium-sized equipment for production. More than 60 sets of advanced equipment for product quality inspection, with 37 series. The boiler and pressure vessel contains 167 specifications and models.

With A-class boiler manufacturing license issued by the General Administration of Quality Supervision, Inspection and Quarantine

A1 and A2 pressure vessel manufacturing licenses

The first-class boiler installation and transformation license

The ISO9001 international quality system certification and so on.

Annual production capacity is over 2000 tons.

YONGXING boiler main product:

Coal fired steam boilers, oil/gas steam boiler,hot water boilers, Thermal oil heaters, hot air furnace, oil/gas burners,chain grate accessories, and other environmentally friendly boilers and pressure vessels .

All the equipment are strictly enforced by the state and Industry standard, reasonable product design, advanced production technology, technical content in the country's similar products in a leading position, with compact structure, low noise, high thermal efficiency, safe and reliable operation, high degree of automation, etc.

All environmental indicators are in line with the national class I regional environmental protection standards require excellent products recommended by the environmental protection department.

Our company holds A-class boiler manufacturing qualification, A1, A2 pressure vessel manufacturing qualification and mechanical and electrical equipment installation engineering professional contracting qualification, and passed the international ISO9001 2000 quality management system certification.

Our company strictly follows the ISO9001 international quality management system guarantee model, carries out quality management and quality inspection and control activities, and the product quality is stable. It was rated as “Contract-honoring and Promise-keeping Enterprise” by the Henan Provincial Administration of Industry and Commerce, “National Honest and Law-abiding Enterprise” by the Ministry of Agriculture, and was included in the member unit by the China Quality and Technical Supervision Association, and has obtained a number of patented technologies.

Company honor:
